Product Details:

• Hardware System for 9/16" (14 mm) Tempered Laminated Glass Awnings (glass is not included)
• Provides Protection From the Weather Without Obstructing the View
• Adjustable Slope for Most Weather Conditions
• All High Grade 316 Alloy Stainless Steel Components
• For Panel Sizes Up to 48" (1219 mm) Wide and 72" (1829 mm) Long
• Easy Installation Allows an Economical and Elegant Solution for Both Commercial and Residential Applications

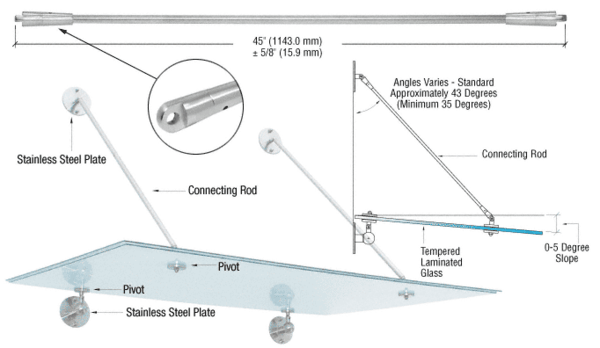

This CRL Glass Awning Connecting Rod is for use with the CRL Glass Awning Support System Mounting Kit.  It is designed to provide a variety of architectural preferences. The Rods should be maintained at a minimum of 45 degrees to obtain the optimal angle of required support. Building architecture or a preferred look could determine the length of Rod used with the Awning System. The Rods are available in lengths of 36, 42 and 48 inches (914, 1067 and 1219 millimeters) and are used with the Glass Awning Support System Mounting Kit.

Please, note: Two Mounting Kits and Two Rods are required for each glass panel to be installed.

One Support Rod per Package.
