Product Details:
- Designed for the "All Glass" Look
- For Use with 1/2" and 5/8" Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|

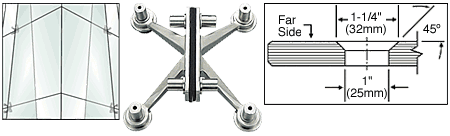

This CRL Regular Duty Fin Stabilized Spider
Fitting can be used with 1/2 inch (12 millimeter) or
5/8 inch (16 millimeter) facade glass, 3/4 inch (19 millimeter)
glass, or metal fins to stabilize the deflections associated with
wind and stack load pressures, while maintaining an "all glass"
look. The Regular Duty Fin Stabilized Spiders are an economical
choice for most projects. Each Spider is supplied with the
countersunk swivel glass fastening fittings. Alternate glass
fasteners are available separately.
Please Note: To determine whether Regular-Duty or Heavy-Duty Spider
Fittings are needed for you application, please consult local
building requirements and a licensed structural engineer.
For additional assistance, contact us at .
SPECIFICATIONS:
For Use With: 1/2 to 5/8 Inch (12 to 16
millimeter) Glass
Glass Fabrication Required: A one inch (25.4
millimeter) diameter countersunk hole per facade glass fastening,
and one 7/8 inch (22 millimeter) diameter hole per fin fastener
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
