Product Details:
- Designed for the "All Glass" Look
- For Use with 1/2" Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|
This CRL 4-Way Glass / 2-Way Wall Cirular
Bracket is used to link two or four inline panels of
glass to a fin support. The bracket, when split apart, can also be
used to connect one or two panels to wall. Supplied with four rigid
countersunk glass connecting screws and two fin securing bolts.
Please Note: To determine whether Regular-Duty or Heavy-Duty Spider
Fittings are needed for you application, please consult local
building requirements and a licensed structural engineer.
For additional assistance, contact us at .
SPECIFICATIONS:
For Use With: 1/2 Inch (12 millimeter) Tempered
Glass

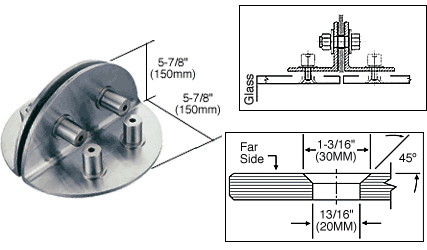

Glass Fabrication Required: One Countersunk Hole
Per Glass Fastening for Countersunk Screws (see diagram above), or
One 15/16 Inch (23 milimeter) Standard Hole for Fin Securing
Bolt
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
