Product Details:

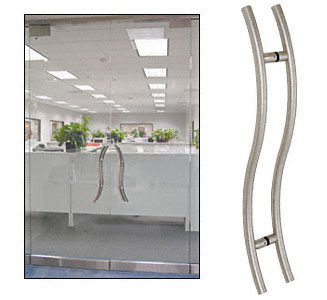

Straight and "S" Style Designs
Extra Height for Eye-Catching Contemporary and Elegant Appearance
Several Sizes in Two Popular Finishes for 3/8" to 3/4" (10 to 19 mm) Glass
1-1/4" (31.8 mm) Diameter Heavy Wall Stainless Steel Tubing

CRL Ladder Style Pull Handles are for back-to-back mounting with supplied through-bolts. Available in a choice of Straight or "S" Style design, our Ladder Style Pull adds elegance and eye-catching appeal to a commercial glass door. Ladder Style Pulls are intended for use with full size glass doors made from 3/8 inch to 3/4 inch (10 to 19 millimeter) thick glass.
Stock sizes range from 24 inch to 84 inch (610 to 2134 millimeter) overall height. Standard finishes are polished stainless and brushed stainless. Custom sizes and finishes are available.

Color: Brushed Stainless

Overall Length: 48 in (1219 mm)
Center-to-Center Mounting: 36 in (914 mm)

Glass Fabrication:
for 1/2" (12 mm) glass - two 5/8" (16 mm) diameter holes required
for 3/4" (19 mm) glass - two 7/8" (22 mm) diameter holes

Minimum Order: 1 Each

Additional Product Information:
Important Note:
This handle is "handed" and the opposite handed pull will be needed for pairs of doors.

For the thicker doors, please, use TB4CH bolt, which permits mounting of pulls to 1-3/4" (44.5 mm) thick, and in majority cases even up to 2" thick, aluminum, wood or hollow metal doors.
