Product Details:
- Four Standard Angles for the Bottom of a Stair or Ramp
Railing Incline
- Brushed or Polished Stainless Finishes in Six
Diameters
|
Interior slip-fit Lower Incline
Corners for 1/2 inch (12 millimeter) or 5/8 inch (16
millimeter) thick glass allow for hairline joint assemblies with
straight lengths of CRL Cap Rail. Use our Cat. No. 32629 Metal Contact Cement to achieve a
secure and permanent bond. Two Connector Sleeves are required for
the use of each corner.
Each Incline Corner is fabricated, finished, and individually
packed. All of our Corners are fabricated from CRL Premium Cap
Rail, and are welded and finished to match. Standard stainless
alloy is 304. Stainless alloy 316 is available on special order.
Please contact us for more information or a
quote.NOTE: When used with 1/2 inch (12
millimeter) glass, our Cat No. GR5PV Cap Rail Vinyl and Cat No. 95CBL
Silicone should be used to
secure the glass. When used with 5/8 inch (16 millimeter) glass,
secure with Cat. No. 95CBL Silicone and Shims.
*This dimension is used to calculate the glass size. Add the
clearance you desire or add an additional
1/8 inch (3.2 millimeter) if using Cap Rail Vinyl

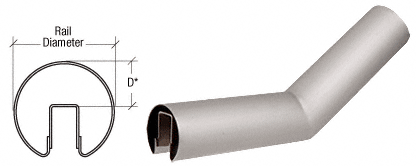

- Rail Diameter: 1-1/2 in (38.1 mm)
- "D" * Dimension: 5/16 in (7.9 mm)
- Leg Length: 6 in (152.4 mm)
- Color: Brushed Stainless
