Product Details:
- Designed for the "All Glass" Look
- For Use with 1/2" and 5/8" Tempered Glass for Facades,
3/4" Tempered Glass for Fins
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|
This CRL Regular-Duty Fin Stabilized Spider
Fitting can be used with 1/2 inch (12 millimeter) or
5/8 inch (16 millimeter) facade glass, 3/4 inch (19 millimeter)
glass, or metal fins to stabilize the deflections associated with
wind and stack load pressures, while maintaining an "all glass"
look. The Regular-Duty Fin Stabilized Spiders are an economical
choice for most projects. Each Spider is supplied with the
countersunk swivel glass fastening fittings. Alternate glass
fasteners are available separately.
Please Note: To determine whether Regular-Duty or Heavy-Duty Spider
Fittings are needed for you application, please consult local
building requirements and a licensed structural engineer.
For additional assistance, contact us at .
SPECIFICATIONS:
For Use With: 1/2 to 5/8 Inch (12 to 16
millimeter) Glass, 3/4 Inch (19.1 millimeter) Tempered Glass for
Fins

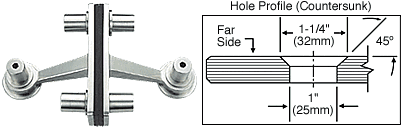

Glass Fabrication Required: A one inch (25.4
millimeter) diameter countersunk hole per facade glass fastening,
and one 7/8 inch (22 millimeter) diameter hole per fin fastener
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
