Product Details:
- Designed for the "All Glass" Look
- For Use with 1/2" Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|

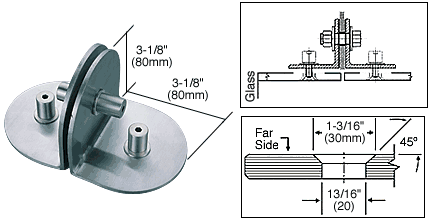

This CRL 2-Way Glass / 1-Way Wall Cirular
Bracket is used to link one or two inline panels of
glass to a fin support. The bracket, when split apart, can also be
used to connect one panel to wall. Supplied with two rigid
countersunk glass connecting screws and one fin securing bolt.
Please Note: To determine whether Regular-Duty or Heavy-Duty Spider
Fittings are needed for you application, please consult local
building requirements and a licensed structural engineer.
For additional assistance, contact us at .
SPECIFICATIONS:
For Use With: 1/2 Inch (12 millimeter) Tempered
Glass
Glass Fabrication Required: One Countersunk Hole
Per Glass Fastening for Countersunk Screws (see diagram above), or
One 15/16 Inch (23 milimeter) Standard Hole for Fin Securing
Bolt
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
Do Not Use With Annealed or Raw Glass.
