Product Details:
- Mounts to Floor Only
- Ready to Install
- Three Architectural Finishes
|

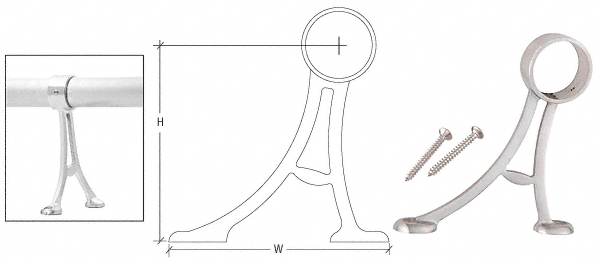

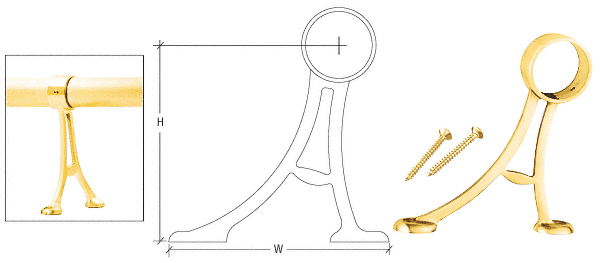

This CRL Floor Mount Bracket for Foot
Railings is available in three architectural finishes for 1-1/2
inch (38.1 millimeter) or two inch (50.8 millimeter) Tubing.
Brackets are individually packed and come with two 12 x 2" Phillips
Flat Head Wood Screws. Tubing is secured with integral set screw.
NOTE: Recommended maximum spacing of Foot Railing Bracket is 48
inch (1219 millimeter). For heavy use, steel inserts should be used
for added strength. Contact us at for details.
NOTE: When installing, the shorter of the two legs on the bracket
should face away from the bar. This is so the long leg won't stick
out where someone could trip over it.
