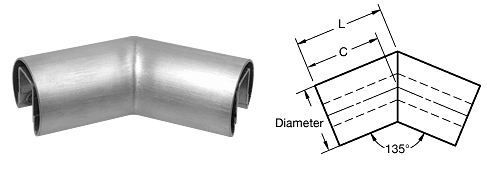

CRL Brushed Stainless 2" Diameter 135º Horizontal Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railing
C.R. Laurence CRL Brushed Stainless 2" Diameter 135º Horizontal Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railing | GR20H3BS
Category: Corners for 2" Tubing
CRL Brushed Stainless 2" Diameter 135º Horizontal Corner for 1/2" (12 mm) or 5/8" (16 mm) Glass Cap Railing
SKU: GR20H3BS
UPC:

$345.52 (20% off)

$287.93

Product Details:

  • Welded and Finished
  • Ready to Install
  • Several Architectural Finishes Plus Mill Aluminum
  • Requires Two Connector Sleeves (Not Included)

This Interior slip-fit Horizontal Corner for 1/2 or 5/8 inch (12 or 16 millimeter) thick glass allows for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner. Each Horizontal Corner is fabricated, finished, and individually packed. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. Please contact us at for more information or a quote.

NOTE: When used with 1/2 inch (12 millimeter) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8 inch (16 millimeter) glass, secure with shims and 95CBL Silicone.
