Category: CRL Glass Mounted Curved Pull Handle

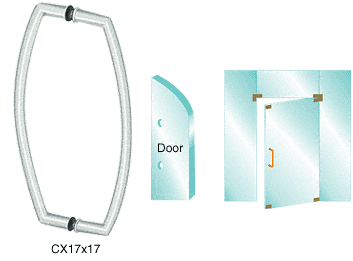

CRL Brushed Stainless 17" Glass Mounted Back-to-Back Curved Pull Handle
SKU: CX17X17BS
UPC:
$224.20
(20% off)
$186.83
Product Details:
For Use With: 3/8" and 1/2" (10 and 12 mm) Glass
1" (25 mm) Diameter Stainless Steel Tubing
This CRL Glass Mounted Curved Pull Handle is
available in two finishes.
Color: Brushed Stainless
Minimum Order: 1 Each
Additional Product Information:
SPECIFICATIONS
Includes:
One Set CX17X17 Pull Handles (back-to-back mounting)
Two Each Through Bolts for Glass Mounting
Four Each 1-1/4 Inch (32 millimeter) Diameter Matching Metal Finish
Washers and Gaskets
For Use With:
3/8 Inch (10 millimeter) Glass
1/2 Inch (12 millimeter) Glass
Construction:
One Inch (25 millimeter) Diameter Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes 16-3/4 Inches (425
millimeter) Center-to-Center
For the thicker doors, please, use
TB4CH bolt, which permits mounting of pulls to 1-3/4"
(44.5 mm) thick, and in majority cases even up to 2"
thick, aluminum, wood or hollow metal doors.
