Product Details:
- Used to Stabilize Glass Facade
- For Use with 3/4" Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|

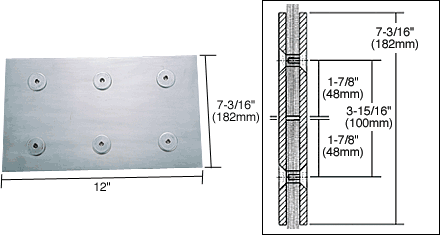

This CRL Fin Splice Fitting is
designed to work with 3/4 inch (19 millimeter) glass. The Splice
Fittings are used to stack multiple pieces of glass to construct
extra tall fins used to stabilize the glass facade. For additional
assistance, contact us at .
SPECIFICATIONS:
For Use With: 3/4 (19 millimeter) Glass
Glass Fabrication Required: One 7/8 Inch (22
millimeter) Diameter Hole Per Glass Fastening
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
Do Not Use With Annealed or Raw Glass.
- Length: 12 in (304.8 mm)
- Color: Brushed Stainless
