Category: 10" Sidelite Rails for 5/8" or 3/4" Glass
CRL Brushed Stainless 10" Square Sidelite Rail for 5/8" or 3/4" Glass - Custom Length
SKU: SR10SBS34CL
UPC:
Product Details:

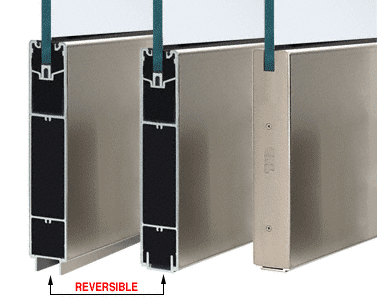

- Extruded Saddle Is Reversible to Match 1/4" and 3/4"
Door Clearances
- Dry Glaze Push-In Top Load Glazing Gasket for 5/8" or
3/4" (16 or 19 mm) Glass
- Many Finishes to Match CRL Door Rails
|
The square profile of this CRL Sidelite
Rail matches perfectly with our Ten Inch (254 millimeter) Square Style
Wedge Lock Door Rails. It is available in many finishes to
match heights to both floor mounted and 1/2 inch (13 millimeters)
threshold doors using our Reversible Saddle. Use the Sidelite Rails
alone for your upper rails, and with our Aluminum Neoprene Setting Blocks,
lifting the glass into the upper rail and lowering into the bottom
rail. This will give you a 9/16 inch (14 millimeters) glass
retention in both the top and bottom channels. Complete the job by
installing the Roll-In EPDM
Gaskets and matching finish End Caps.
