Product Details:
- Designed for the "All Glass" Look
- For Use with 1/2" to 3/4" Tempered Glass for Facades,
3/4" Tempered Glass for Fins
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|
This CRL Heavy-Duty Fin Stabilized Spider
Fitting can be used with 1/2 inch (12 millimeter) to
3/4 inch (19 millimeter) facade glass, 3/4 inch (19 millimeter)
tempered glass or metal fins to stabilize the deflections
associated with wind and stack load pressures, while maintaining an
"All Glass" look. The Heavy-Duty Fin Stabilized Spiders are an
economical choice for most projects. Each Spider is supplied with
the countersunk swivel glass fastening fittings. Alternate glass
fasteners are available separately.
Please Note: To determine whether Regular-Duty or Heavy-Duty Spider
Fittings are needed for you application, please consult local
building requirements and a licensed structural engineer.
For additional assistance, contact us at .
SPECIFICATIONS:
For Use With: 1/2 to 3/4 Inch (12 to 19
millimeter) Glass

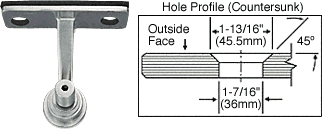

Glass Fabrication Required: One 1-7/16 inch (36.6
millimeter) diameter countersunk hole per facade glass fastening,
one 7/8 inch (22 millimeter) diameter hole per fin fastener
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
