Product Details:

For Glass Thicknesses of 1/4" (6 mm)
An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
May be Used on Radius or Flat Surfaces

CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. Z-Series Glass Clamps are available in sizes to accommodate glass thicknesses from 1/4 to 1/2 inch (6 to 12 millimeter).

Color:   Brushed Nickel

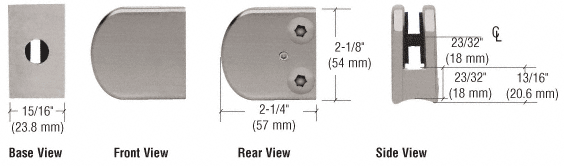

Width:  2-1/8 in (54 mm)
Height: 2-1/4 in (57 mm)

Minimum Order: 1 Each

Additional Product Information:
The universal radius base design can be applied on flat surfaces, or used for 1-1/2 to 2 inch (37 to 50 millimeter) tubing. By drilling a hole in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. Appropriate gaskets are included with each clamp.
