Category: CRL Oversized Square Fixed Panel U-Clamp

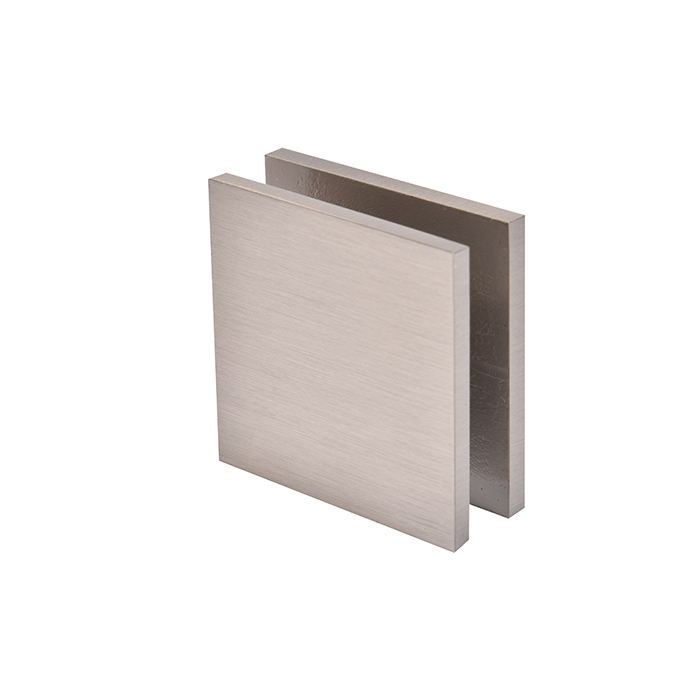

CRL Brushed Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp
SKU: SCU4BN
UPC:
Product Details:

For 3/8 to 1/2" (10 to 12 mm) Glass
Solid Brass
CRL Square Style Hole-in-Glass Fixed Panel
U-Clamps feature sharp corners and come in a variety of
finishes. One mounting screw per clamp is included. Clearance
between the glass and the wall is 5/32 to 3/16 inch (4 to 4.8
millimeter). They perform the same function as our Standard Square
Wall Mount Clamps. The glass fabrication difference between the two
clamps is that the Standard Wall Mount requires a v-notch and the
Fixed Panel Clamp requires one hole.
Color: Brushed Nickel
Width: 2 in (51 mm)
Height: 2 in (51 mm)
Minimum Order: 1 Each
The Fixed Panel Clamp is recommended for 3/8 to 1/2 inch (10 to
12 millimeter) thick glass installations where a hole drilling
measurement of 1-1/2 inches times the glass thickness is required
by the Temperer (from the edge of the glass to the closest edge of
the hole).
Requires drilling 5/8 or 3/4 inch (16 or 19 millimeter) hole.
