CRL Brushed Nickel Small Set Screw Hinge for 1/4" to 5/16" Glass
Category: Just Arrived!
CRL Brushed Nickel Small Set Screw Hinge for 1/4" to 5/16" Glass
SKU: EH73
UPC:
Product Details:
- Available in Chrome and Brass Finishes

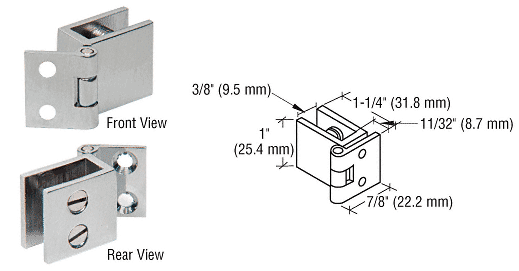

These CRL Small Set Screw Hinges are a
general purpose small hinge with the set screws on the back side of
the hinge. These "no-drill" hinges were designed for glass to wall
installations. The tempered glass is secured with plastic tipped
set screws. Use of tempered glass is recommended. The maximum
recommended door width is 18 inches (457 millimeters). Maximum door
height is 24 inches (610 millimeters) using 5/16 inch (8
millimeter) thick tempered glass and 28 inches high 711
(millimeters) when using 1/4 inch (6 millimeter) tempered glass.
Maximum weight should not exceed 8 pounds (3.6 kilograms).
