CRL Brushed Nickel Plated Short, Round Floor Base Fitting for Cable Display System
C.R. Laurence CRL Brushed Nickel  Plated Short, Round Floor Base Fitting for Cable Display System  | CB85
Category: CRL Cable Display System Components for up 3/8 in
CRL Brushed Nickel Plated Short, Round Floor Base Fitting for Cable Display System
SKU: CB85
UPC:

$37.00 (20% off)

$30.83

Product Details:

Attractively Designed to Attach to Wood Flooring or Laminate Base

Available in Several Finishes

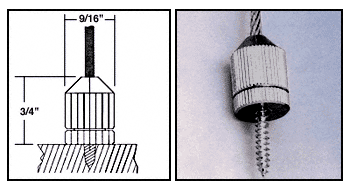

The CRL Brushed Nickel  Plated, Short, Round Floor Base Fitting for the Cable Display System has a set screw clamping system which allows fast tensioning of the cable system. The Short, Round Floor Base Fitting screws into a floor or a wood laminate base and gives the fixture designer options in terms of base fittings since the Long Round Floor Base Fitting also performs the same function.



Color:             Brushed Nickel

Diameter:       9/16 in (14 mm)

Barrel Height: 3/4 in (19 mm)



Important Note:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.

If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).
