Category: CRL Cable Display System Components for up 3/8 in
CRL Brushed Nickel Plated Fixed Double Shelf Brackets for the Cable Display System
SKU: CB97
UPC:
Product Details:

Securely Holds Panels in
Horizontal Position
For 1/4" and 5/16" Panels
Mounted in Side-by-Side Position
Available in Chrome, Brush
Nickel and Gold Plated Finishes

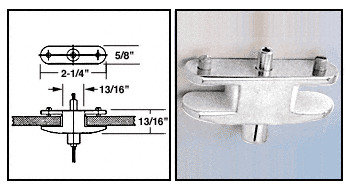

The CRL Fixed
Double Shelf Bracket for the Cable Display System have a
highly efficient and secure set screw clamping system. Designed for
side-by-side shelf installations, the Fixed Double Brackets are
very easily installed by inserting the stainless steel cable end
thru the Bracket lower push tube. When the "push tube" is
depressed, the Bracket can be adjusted to the desired position on
the cable. The Brackets will stay firmly and securely in place on
the 2mm cable. To re-position the Brackets, simply depress the
"push tube" and slide the Bracket up or down on the cable. The
Brackets are designed to accommodate 1/4 to 5/16 inch (6-8mm)
panels.
Color: Brushed Nickel Plated Finish
Width: 5/8 in (16mm)
Length : 2-1/4 in (56mm)
Height: 13/16 in (20mm)
Important
Note:
WEIGHT LIMITATIONS: When
properly installed, each column (4 cables) can bear a total weight
of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20
lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger
Pipe Base Fittings are properly anchored and used as ceiling
attachments, each column (4 cables) can bear a total weight of 40
lbs. (18kg.).
