CRL Brushed Nickel Plated Adjustable Double Shelf Brackets for the Cable Display System
SKU: CB105
UPC:
Product Details:

Securely Holds Panels with Angle Adjustment
Options For Shelves in Side-by-Side Installations
For 1/4" and 5/16" Panels Mounted in
Side-by-Side Position
Available in Several Finishes
The CRL Adjustable Double Shelf
Bracket for the Cable Display System has a highly
efficient and secure set screw clamping system that permits the
installed panel, mounted in side-by-side installations, to be
angled or tilted to enhance your display or for signage purposes.
Each side of the Adjustable Double Bracket can be rotated
independently so that the side-by-side panels can be at different
angles. To adjust the brackets to the desired angle, the "push
tubes" are depressed and the brackets moved down the cable to
achieve the necessary angle. For Signage purposes, only two or
three cables need to be installed at the proper distance apart to
accommodate the width of your sign or decorative panel.

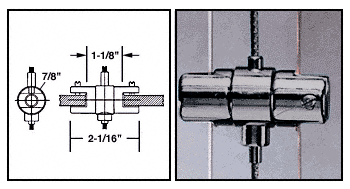

Color: Brushed Nickel
Diameter: 7/8 in (22mm)
Length: 2-1/16 in (52mm)
Additional Product
Information:
The Fixed Brackets are very easily
installed by inserting the stainless steel cable end thru the
Bracket lower push tube. When the "push tube" is depressed, the
Bracket can be adjusted to the desired position on the cable. The
Brackets will stay firmly and securely in place on the 2mm cable.
To re-position the Brackets, simply depress the "push tube" and
slide the Bracket up or down on the cable. The Brackets are
designed to accommodate 1/4" to 5/16" (68mm) panels.
Important Note:
WEIGHT LIMITATIONS: When properly
installed, each column (4 cables) can bear a total weight of up to
80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs.
(9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.
If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored
and used as ceiling attachments, each column (4 cables) can bear a
total weight of 40 lbs. (18kg.).
