Product Details:

Available Locking and Non-Locking Models
Accepts 5/8" (16 mm) Throw Bolt

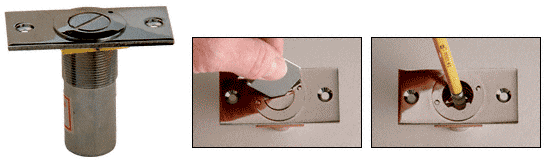

This CRL Dust Proof Locking Keeper with Mounting Plate works with our 777S Door Rail Floor Lock and our AMR205A Patch Lock. Accepts 15/32 inch (12 millimeter) plunger from these or similar devices. Keeper is packed with two Flat Head Screws. Requires 1 inch (25 millimeters) diameter hole drilled 2 inches (51 millimeters) deep into floor.

Color: Brushed Nickel

Length of Mounting Plate: 2-7/8 in (73 mm)
Width of Mounting Plate:  1-3/8 in (35 mm)

Minimum Order: 1 Each

Fabrication Required:
One inch (25 millimeters) diameter hole drilled two inches (51 millimeters) deep into floor and two holes for #10 screw anchors.

• Width of Mounting Plate: 1-3/8 in (35 mm)
• Length of Mounting Plate: 2-7/8 in (73 mm)
• Color: Brushed Nickel
