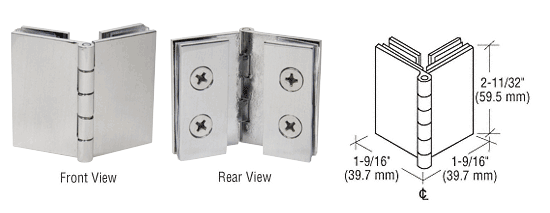

CRL Brushed Nickel Double Glass-to-Glass 90 Degree Return Hinge
Category: Just Arrived!
CRL Brushed Nickel Double Glass-to-Glass 90 Degree Return Hinge
SKU: EH253
UPC:
Product Details:
- For 1/4" to 5/16" (6 to 8 mm) Glass
For glass-to-glass 90 degree return applications. CRL
Brass Double Glass-to-Glass 90 Degree Return Hinges
are made of forged brass construction with a screw attachment
feature. Clear vinyl pad inserts protect glass. Available in
polished brass with lacquered finish or chrome plated. Requires
four 1/2 inch (12 millimeter) holes in glass for mounting. The
maximum recommended door width is 22 inches (559 millimeters).
Maximum weight should not exceed 30 pounds (13.6 kilograms).
