Category: CRL Deluxe Showcase Sliding Track Assemblies
CRL Brushed Nickel Deluxe Track Assembly D603 Upper and D601 Rail with Steel B.B. Wheels - 12 ft Long
SKU: D2301BNBB
UPC:
$184.82
(20% off)
$154.02
Product Details:
Noise Free Sliding
Commercial and Residential Applications
Pass-Thru Windows, Trophy Cases, Showcases, Book Cases, Gun Cases,
Medical Cabinets and China Cases
This CRL Deluxe Rolling Track
Assembly has an aluminum upper channel with an
aluminum shoe. The rails drop into the double lower channel. The
nylon rollers allow up to 1/4 inch (6 millimeter) glass doors to
have effortless sliding. This assembly can be used for residential
and commercial installations.
Color: Brushed Nickel
Length: 12 ft in (3.66 mm)
Minimum Order: 1 Stock Length
NOTE: General Glass Cutting Dimensions
Guidelines
Glass Height = Opening Minus 1-3/8 inches (35 millimeters)
If an extremely tight fit is required, the customer should
calculate glass deductions while fabricating the unit, but the
guidelines as stated above are satisfactory to most of our
customers.

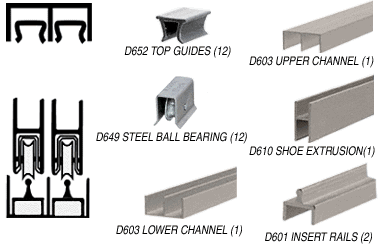

CRL Standard Rolling Track Assembly Consists
of:
D603 Upper Channel
D610 Shoe
D649 Rollers
D652 Top Guides
D601 Rail
D603 Lower Channel
Note: Maximum suggested panel size is 36 inches wide x 48 inches
high (914 x 1219 millimeters).
