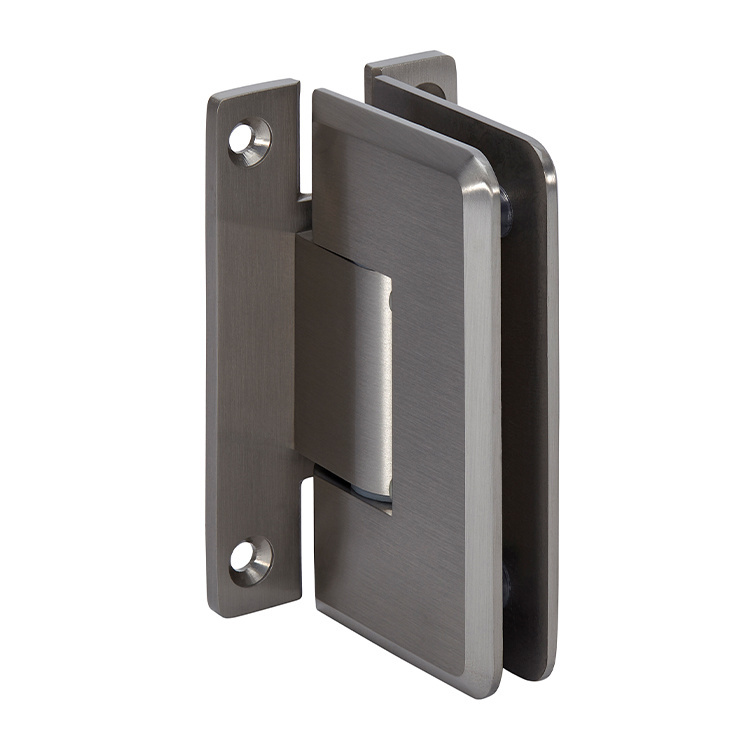

CRL Brushed Nickel Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
CRL Brushed Nickel Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge | C0L337BN
Category: Just Arrived!
CRL Brushed Nickel Cologne 337 Series Adjustable Wall Mount Full Back Plate Hinge
SKU: C0L337BN
UPC:

$134.95 (20% off)

$112.46

Product Details:

  • Adjustable to Any Angle Up To 90 Degrees Without Removing Door
  • Available in Several Beautiful Finishes
  • Use Monolithic Tempered Glass

The CRL Cologne Adjustable Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) tempered safety glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility and allows the designer/installer to create custom enclosures limited only by their imagination. The Cologne Adjustable Series has taken our popular Cologne Series to a new level. Adjustment to accommodate the angle desired (up to 90 degrees) is done after the door is installed. Once the door is hung, simply loosen the allen screws and turn the door to the desired closed position. By merely tightening the allen screws, your door will close precisely to 0 degrees. The door can swing 90 degrees inward and also 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
  • Color: Brushed Nickel

Using two hinges with 3/8 to 1/2 inch glass (10 to 12 millimeter) the hinge will hold up to 110 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters).Using three hinges with 3/8 to 1/2 inch glass (10 to 12 millimeter) the hinge will hold up to 140 pounds (63 kilograms) with a maximum width of 36 inches (914 millimeters).Specifications:
  • Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
  • Special Feature: Adjustable to any angle up to 90 degrees without having to take door down
  • Construction: Solid Brass
  • Hinge Swings: 90 Degrees Inwards and Outwards (at factory set position)
  • Closing Type: Precise closing at 0 Degrees
  • Cut-Out Required
  • Includes: One Hinge, Gaskets, Screws and TemplateCustom finishes are available on request. For more information contact CRL Shower Door Technical Sales at (800) 421-6144 in the U.S., (877) 421-6144 from Canada, or (323) 588-1281 (International), and ask for extension 7740, or online here.
