Category: CRL Adjustable "Sleeve Over" Glass Clamp
CRL Brushed Nickel Adjustable "Sleeve Over" Glass Clamp
SKU: S0GC91BN
UPC:
Product Details:
For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Adjustable From 90 to 180 Degrees
Solid Brass
Assists With Shear Forces
Holds Glass Panels in Position While Sealant Cures
CRL Sleeve-Over Glass Clamps were designed with
two purposes in mind. The first is to provide a mechanical fastener
to assist with shear forces placed on the glass panels. The second
is to provide a securing clamp that would hold the glass panels in
position while the sealant applied in the joint cures (the silicone
sealant glues the glass panels together, prevents water leakage,
and provides the pull strength to keep panels from separating).
Clamps are secured in place by a nylon tipped Allen screw.

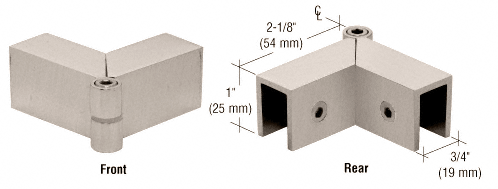

Color: Brushed Nickel
Width Per Leg: 2-1/8 in (54 mm)
Height: 1 in (25 mm)
Minimum Order: 1 Each
Important Note:
These Clamps are not designed to take the place of Headers or a
Support Bar.
