Product Details:
- Secures Shower Enclosure Not Going to
Ceiling
- Snap-In Filler Insert for Door Pocket
Included
- Available in Several Beautiful Finishes
- New, Contoured Design to Rounded Side of Header
Provides Sleeker Appearance
|
The CRL Deluxe Header Kit will provide
additional support and a level of safety while securing glass
panels not reaching the ceiling. Deluxe Header Kits are designed to
allow installers to do in-house fabrication using a selection of

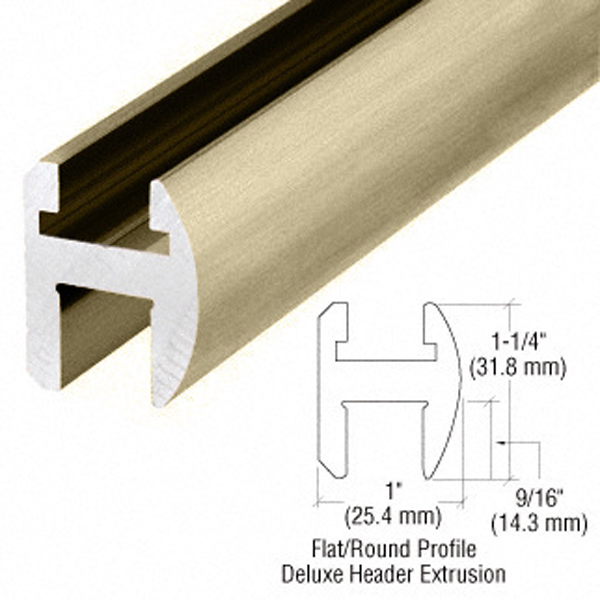

component parts. Sold in 66, 95 and 144 inch lengths, the double
profile extrusion has a narrow 1-1/4 inch (31.8 millimeter) face to
minimize the visible sight line. A choice of facing edges (round or
flat with mitered edges) is possible by simply reversing the
extrusion. 90º, 135º or
Adjustable Corners are sold separately. Also Available is a
special Adapter Block for
use on pivot hinge installations. A 2-1/4 inch (57.2 millimeter)
Blank Mounting Bracket is
offered for installations when the Header does not meet the wall at
90º, and the standard Wall Mounting Brackets cannot be used.
Header is constructed of aluminum alloy 6463. This Header
Kit is adaptable to Senior Prima or Prima Hinges, Junior Prima
Hinges should be used with the Junior Header Kit.
Kit Consists Of:
- One 66, 95 or 144 InchHeader Extrusion (one round and flat
side)
- One 36 Inch (914 millimeter) Piece Snap-In Filler for Door
Pocket (trim to size)
- Vinyl for 5/16 and 3/8 Inch (8 and 10 millimeter) Glass (not
required for 1/2 inch (12 millimeter))
- One Set of SHB100
Aluminum Wall Mounting Brackets
