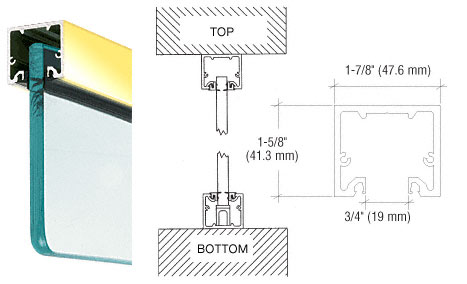

CRL Brite Gold Anodized Wide U-Channel With Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - Custom Length
C.R. Laurence CRL Brite Gold Anodized Wide U-Channel With Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - Custom Length | NH2BGACL
Category: Just Arrived!
CRL Brite Gold Anodized Wide U-Channel With Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - Custom Length
SKU: NH2BGACL
UPC:

Product Details:

  • Matches Width of Door and Sidelite Rails and Accepts Roll-In Gasket, Top Pivot Block and Flush Snap-In Insert


  • This CRL Wide "U" Channel and Narrow Header was developed with three uses in mind: As a "U" Channel that would be the same width as our Sidelite and Door Rails; as a Narrow Header that is the same width as our Sidelite and Door Rails, and will accept a top free-swinging pivot to secure the top of the doors; as an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4 inch (6.4 millimeter) header saddle. All drilling, tapping and fabrication is done during the manufacturing process to save time and prevent the need for field fabrication. For additional information, contact CRL Technical Sales by calling Toll-Free (800) 421-6144 Extension 777 or by e-mail.


  • Length: Custom
  • Color: Brite Gold
