Product Details:

Can not be ship by UPS, FedEx - Common Carrier Only.
Must be cut to ship UPS.
Call for shipping quote. 216-663-9830

Extruded Saddle Is Reversible to Match 1/4" (6 mm) and 3/4" (19 mm) Door Clearances
Dry Glaze Push-In Top Load Glazing Gasket for 3/8" (10 mm) and 1/2" (12 mm) Glass
Several Finishes to Match CRL Door Rails

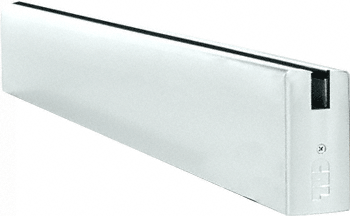

The square profile of the CRL Sidelite Rails match perfectly with our Four Inch (101.6 millimeter) Square Style Door Rails.

Color: Brite Brushed Anodized

Length of Rail: 120 in (3.05 m)

Additional Product Information:
Available in several finishes in 120 inch (3.05 millimeter) lengths and two finishes in extra long 240 inch (6.10 millimeter) lengths, they match heights to both floor mounted and 1/2 inch (12.7 millimeter) threshold doors using our Reversible Saddle. Use the Sidelite Rails alone for your upper rails, and with our Aluminum Neoprene Setting Blocks, lifting the glass into the upper rail and lowering into the bottom rail. This will give you a 9/16 inch (14.3 millimeters) glass retention in both the top and bottom channels. Complete the job by installing the Roll-In EPDM Gaskets and matching finish End Caps.
