Category: CRL Adapter Blocks Used with Prima Hinges

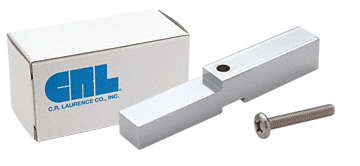

CRL Brite Anodized Adapter Block for Prima, Shell and Rondo Hinges
SKU: HAB01BA
UPC:
Product Details:
Allows Hinge to be Mounted Into Header
Fits Prima, Shell and Rondo Series Pivot Hinges
Available in Several Finishes
This
CRL Adapter Block is
commonly used with the Prima (not Junior or Senior series), Shell
and Rondo Series of hinges. The Adapter Block allows the hinge to
be mounted directly into the shower header assembly and can be
adjusted sideways to any position required. The Adapter Block has a
clearance notch which allows it to fit under the wall bracket when
the hinge is mounted close to a wall.
A drilled 3/16 inch (5 millimeter) hole in the header is required
for installation and the hinge base plate must be removed to mount
the hinge to the header.
Color: Brite Anodized
Length: 3-1/2 in (87 mm)
Width: 1/2 in (12 mm)
Minimum Order: 1 each
Each adapter block is individually packed
with a screw.
