Category: CRL Deep U-Channel for 3/8" Glass
CRL Bright Gold Anodized Frameless Shower Door Aluminum Deep U-Channel for 3/8" Thick Glass - 12 ft long
SKU: SDCD3812BGA
UPC:
Product Details:
Requires Cutting Instructions.
Call toll free for shipping quote. 216-663-9830
Profiles for Fixed Panels and Swinging Doors
Available in Many Finishes
144" (3.66 m) Stock Lengths
We offer three profiles of CRL Aluminum U-channels
for shower door installations. The fixed panel Regular and Deep
U-Channels are for securing fixed panels of glass to the wall,
ceiling or floor. The U-Channel with Wipe is ideal for
waterproofing the bottom of the door. Wipe is dual durometer
translucent vinyl that can be trimmed for exact fit. Widths
suitable for 3/8 and 1/2 inch (9 and 12 millimeter) glass are
available in each style and are individually wrapped to protect the
finish.
Use our 99AS Aquarium Silicone to secure the glass.
Color: Brite Gold Anodized
Thickness: .080 in (2.03 mm)
Length: 144 in (3.66 m)
Minimum Order: 1 Each
Additional Product Information:

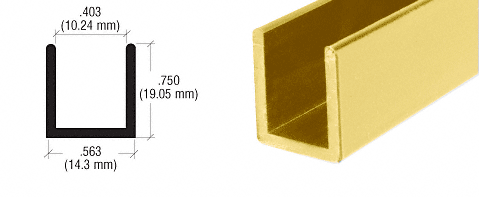

This 3/4 inch (19.1 millimeter) high profile CRL Deep U-Channel can
be used as the top channel in installations where the glass must be
inserted into the top channel, then lowered into the Regular
U-Channel.
