Product Details:

For 1/4" to 5/16" (6 to 8 mm) Glass
Forged Brass Construction
Two 1/2" (12 mm) Holes Required

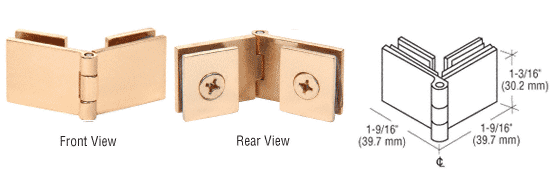

For glass-to-glass 90 degree return applications. CRL Brass Glass-to-Glass 90 Degree Return Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass.

Color: Polished Brass Finish

Minimum Order: 1 Package (Two hinges per pack.)

Available in polished brass with lacquered finish or chrome plated. Requires 1/2 inch (12 millimeter) holes in glass for mounting.
The maximum recommended door width is 16 inches (406 millimeters). Maximum weight should not exceed 20 pounds (9.1 kilograms).
