Product Details:

Ideal for Use on Light Duty Commercial Doors, Cabinet Doors and Entry Doors
Offset Pivot Point Allows Full 180° Swing
For 5/16" to 3/8" (8 to 10 mm) Glass

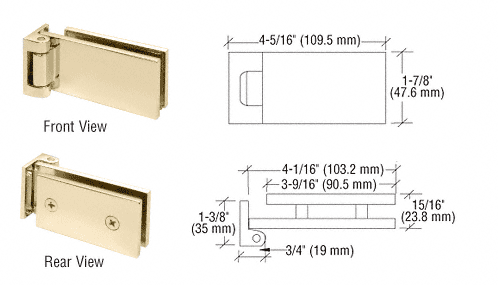

This CRL Free Swinging Offset Pivot Hinge is perfect for light duty doors, such as partitions and smaller entry doors. Also commonly used for cabinet doors. This hinge requires only two 5/8 inch (16 millimeter) holes in the glass, and comes in popular polished brass and chrome finishes.

Color: Brass

Minimum Order: 1 Each (one hinge per package)

Additional Product Information:
Specifications:
Glass Size: 5/16 and 3/8 Inch (8 and 10 millimeter)
Construction: Solid Brass Casting
Closing Type: Free Swinging
Glass Fabrication: Two 5/8 Inch (16 millimeter) Holes
Includes: Gaskets and Template

The maximum recommended door width using two hinges is 32 inches (813 millimeters) and maximum weight should not exceed 96 pounds (43 kilograms).
The maximum recommended door width using three hinges is 36 inches (914 millimeters) and maximum weight should not exceed 140 pounds (63 kilograms).
