Product Details:

For Glass or Wood Shelves 1/8" to 15/16" (3 mm to 24 mm) Thick
For Shelves Up to 10" (254 mm) Deep (Protrusion from Wall)
Typical Applications Include Bathroom Shelves, Displays, Speakers, Collectibles

CRL Glass Adjustable Shelf Brackets are designed to work with 1/8 to 15/16 inch (3 to 24 millimeter) thick glass or wood shelves, up to 10 inches (254 millimeters) deep.

The material directly behind the bracket could have an effect on the brackets performance. The brackets are secured with one screw (included) to the substrate.
In drywall installations for maximum strength, brackets should be secured to a stud no more than 16 inches (406 millimeters) apart.
In concrete installations quality anchors are recommended.
Hard materials such as concrete, tile or marble do not have the tendency to dent or collapse. However, depending on its condition, drywall can compress or dent and allow the front edge of the shelf to slant down. Therefore, the depth of the shelf and the amount of weight placed on it should be considered in this type of installation.

For stud mounting, drill hole using 1/8" bit, to the depth of the screw and screw firmly.
If using a wall anchor in necessary, be sure to select proper anchor for wall material,

Maximum recommended weight per pair of DL631 Shelf Brackets correctly installed is 44 pounds (20 kilograms).

Color: Brass
Height (Closed Position): 2-1/16 in (52 mm)

Minimum Order: 1 Pair

Additional Product Information:

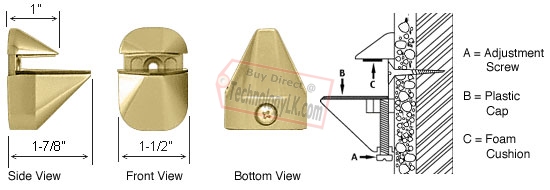

An adjustment screw is also included to accommodate various glass thicknesses.

Important Note:
Shelf Brackets should be mounted no more than 16" (406 mm) apart.
TechnologyLK is not responsible for inappropriate use, poor surface conditions or overloading.
