CRL Black Outside Pull and Keyed Locking Unit Multiple Screw Hole Patterns
C.R. Laurence CRL Black Outside Pull and Keyed Locking Unit Multiple Screw Hole Patterns | C1139
Category: Keyed Locking Unit Handles and Pulls
CRL Black Outside Pull and Keyed Locking Unit Multiple Screw Hole Patterns
SKU: C1139
UPC:

$70.43 (20% off)

$58.69

Product Details:

Allows Application to a Variety of Handle Sets
Comes Complete with Key Cylinder
Compatible with Adam Rite and W & F

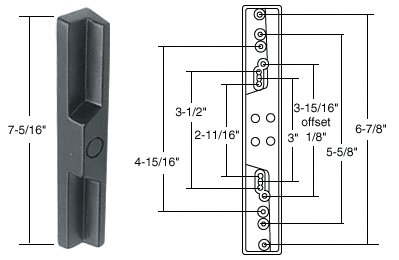

This unique product is the most versatile CRL Locking Unit available. It will accommodate seven different hole spacing patterns from 2-11/16 to 6-7/8 inches (68.3 to 174.6 millimeters). The 3-15/16 inch (100 millimeter) hole spacing is designed for use with mortise lock installations using Adams Rite and W&F mortise locks, these holes are offset 1/8 inch (3.2 millimeter) from that of the locking cylinder hole. The pull has a quick knock out plug for an optional key cylinder, and the screw hole spacing allows application to wide variety of handle sets.

Minimum Order: 1 Package

Each package contains one outside pull and locking cylinder with installation fasteners.
