Category: CRL 4" Square Door Rails for 1/2" Glass with Lock - 35-3/4" Length

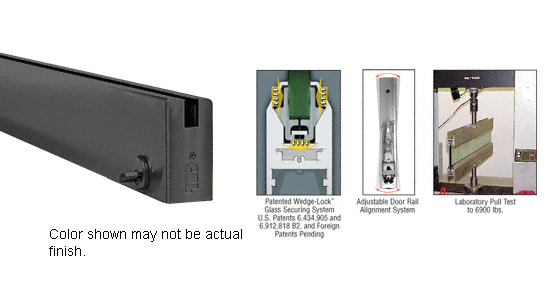

CRL Black 4" Square Door Rail With Lock for 1/2" Glass - 35-3/4" Length
SKU: DR4SBL12SL
UPC:
$570.14
(20% off)
$475.12
Product Details:
Exclusive CRL Wedge-Lock Dry Glazed Glass Securing System for
Rapid Installations and Steadfast Holding Power
Notching of Glass Not Required Dry Glazing Allows Field Glass
Replacement
Doors Can Be Ready for Installation in Less Than 10 Minutes
An innovative new glass entrance system, the CRL
Wedge-Lock™ Door Rail System features the exclusive CRL
Wedge-Lock™ Securing System (U.S. Patents 6,434,905 and 6,912,818
B2. Canadian Patent 2,419,706.), a totally new concept for securing
the glass in the door rail. It works by applying pressure from the
bottom of the door rail, using two glass retaining aluminum
extrusions via a flat stainless steel bar. As this bar is pulled
down with socket head cap bolts, pressure is applied to the glass
retaining aluminum extrusions. The bottom of the extrusions are at
an angle and fit into an angled groove in the door rail. As the
glass retaining extrusions are being pulled down, the angled wedge
in the door rail also pulls the glass retaining extrusions
together. This action, along with our specially designed door
retaining gasket, creates a tremendous amount of force (more than
900 pounds) in our nine inch (228.6 millimeter) Corner Rail. That's
100 pounds per inch. Imagine how much force is created in our full
length Door Rails!
Color: Black
Length of Rail: 35-3/4 in (908 mm)
Height: 4 in (101.6 mm)
Additional Product Information:
The Wedge-Lock Glass Securing System gives you more than a secure
attachment to the glass. It provides the fastest installation time
of any door rail system offered to the industry. Experienced
installers can have a door prepared for installation in less than
ten minutes.
CRL Wedge-Lock Door Rails come completely fabricated and ready to
install right out of the carton with the End Caps installed. After
the rail is installed, the only thing required before hanging the
door is to attach the door arm or pivot (not included) to the
adjustable door alignment slide already assembled in the Door Rail.
The Adjustable Door Alignment System feature allows you to adjust
the door 1/8 inch (3.2 millimeter) toward or away from the jamb
without removing the door. This is standard on both top and bottom
rails.
After the door is installed all you need do to adjust the door is
to remove the End Cap. This will reveal three socket head cap
bolts. The center bolt is the securing bolt used to lock the
adjustable slide in position. The two outer bolts are used to
adjust the slide 1/8 inch (3.2 millimeter) in or out. The low
profile of the adjustable slide allows the pivots with slotted
grooves to be moved to a position other than the American Standard
Setback of 2-3/4 inches (69.8 millimeter). This means we can
fabricate them for vertically out-of-square openings.
Other reasons to choose CRL Wedge-Lock Door Rail System: Models are
available to accept 3/8 or 1/2 inch (10 or 12 millimeter) glass; a
rigid single component housing that will not shift and fall out of
adjustment over time because it is not made up of two halves; the
internal components do not require removal before installation; the
glass securing pads are designed for longevity in extreme
environments. Note: All Wedge-Lock Door Rails feature the built-in
Jamb Alignment Block, but arms and pivots must be ordered
separately to meet job requirements.
CRL Wedge-Lock Door Rails come in several standard finishes, and
can be quoted in custom finishes and widths upon request.
Important Note:
* Comes standard with Jamb Alignment Block. Arms and Pivots must be
ordered separately to meet job requirements.
