CRL B5A Series Hole Pattern "F" 12" (305 mm) C.T.C. Fascia Mount SurfaceMate Square Base Shoe
CRL B5A Series Hole Pattern "D" 12" (305 mm) C.T.C. Bottom Mount SurfaceMate Square Base Shoe - 10 ft Long | B5A10F
Category: B5A SurfaceMate Square Base Shoes
CRL B5A Series Hole Pattern "F" 12" (305 mm) C.T.C. Fascia Mount SurfaceMate Square Base Shoe
SKU: B5A10F
UPC:

$827.08 (20% off)

$689.23

Product Details:


Adjustable Angle Base Shoe and Shimming System for Dry Glazing 1/2" (12 mm) Monolithic Tempered Glass
Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
Custom Cutting and Mitering Service Available
6063 Alloy
T52 Temper

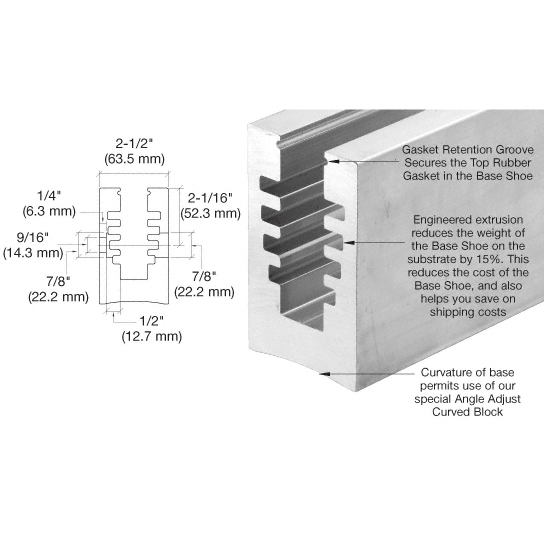

The CRL B5A Series SurfaceMate Adjustable Angle Square Base Shoe and Shimming System is unlike any other base shoe you’ve ever used. This special aluminum extrusion features a curved base that sits a top a curved aluminum block at each bolt location, providing a margin of adjustment to accommodate uneven surfaces. Just install the mounting bolts loosely, then pivot the base shoe until your PAL tool indicates level. Additional matched size aluminum horseshoe shims are available in three thicknesses for adjusting the height when an abrupt dip is encountered. No more tedious shimming to achieve vertical plumb, this new method will adjust within a 3 degree range, well in excess of the maximum allowable floor drainage slopes. The engineered grooves in the inner channel help to reduce the weight of the base shoe by about 15%, which reduces the weight on the mounting substrate, and also helps you save on shipping costs. Approximate weight per 10 foot (3.05 m) stock length is 73 pounds (33 kg).

GLASS SPECIFICATIONS:
1/2" (12 mm) Thick Glass when using TAPER-LOC™ Dry Glaze System
