Product Details:
- Fast Heat-Up Time; 200°F to 400°F Operating
Range
- Uses Economical Chunk Form Material
- Used to Dispense CRL520LB and CRL520LB45 Hot Melt
Butyl
|

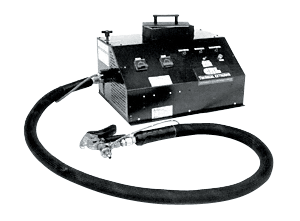

The CRL Aztech Mini Hot Melt Butyl Dispensing
System is a compact table top hot melt gunning unit
designed for production rates of up to 50 pounds (22.7 kilograms)
of hot melt sealants or adhesives per day. The pot holds
approximately 20 pounds (nine kilograms) of material. Additional
material may be added to the pot at any time during production. A
heavy duty progressive cavity pump provides a uniform, pulse free
adjustable flow rate for hand gunning or automatic dispensing. An
eight foot (2438 millimeters) heated gunning hose and a trigger
actuated hand gun with a swivel coupling is supplied with the unit.
A variety of nozzles and dispensing heads are available. Clean up
is minimal. The power is simply turned off when the equipment is no
longer needed, and reheated when required. Heat up time is
approximately one hour.
Read the owner\'s manual and all manufacturer\'s warnings before
using this machine. The material that is dispensed from this unit
can be in excess of 400°F and can easily cause burns to the
skin and eyes. Failure to take these precautions can result in
operator injury.
