CRL Aluminum/Neoprene Setting Block for "U" Channel
C.R. Laurence CRL Aluminum/Neoprene Setting Block for "U" Channel | UCSB4
Category: CRL Aluminum/Neoprene Setting Block

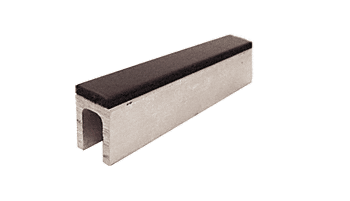

CRL Aluminum/Neoprene Setting Block for "U" Channel
SKU: UCSB4
UPC:

$14.68 (20% off)

$12.23

Product Details:

Protects Glass Edge While Providing Rigid Glass Support
Provides Proper Height for Recommended Glass Coverage
RED-E to Ship Models From CRL Inventory

CRL Aluminum Setting Blocks with Neoprene are used to provide a rigid glass support for the bottom of our U-Channel with Roll-In Top Load Gasket. They are the proper height to provide 9/16 inch (14.3 millimeter) glass coverage in both the Top and Bottom Channels when glazed with the "lift and drop" method. Blocks are four inches (102 millimeters) long.

Length of Block: 4 in (102 mm)
Width: 5/8 in (16 mm)
Height : 7/8 in (22 mm)
