Product Details:

For Use with PR40 Surface Mounted Closers

Provides a Solid Mounting Surface for the Closer Body When Clearance or Mounting Surface is Limited

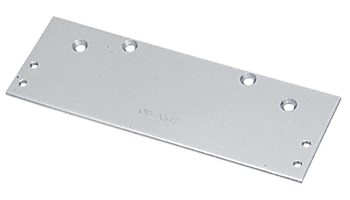

The CRL PR40DP Wide Drop Plate is intended for use with our PR40 Surface Mounted Door Closers.

It provides a solid mounting surface for the closer body when clearance or mounting surface is limited.

Suitable for top jamb mounts when overhead ceiling clearance is less than 1-3/4 inches (45 millimeters) or to provide clearance for a surface applied stop or holder.

This drop plate will permit parallel arm installations when the door rail is less than 2-1/2 inches (64 millimeters) high.

Color: Aluminum

Length of drop Plate: 9-3/4 in (248 mm)

Height of Drop Plate: 3-3/8 in (86 mm)
