Product Details:

5-Pin Cylinder - 1" Length (25 mm) x 1-5/32" (29 mm) Diameter
AR MS Type Cam
Core Face and Keys US 26D

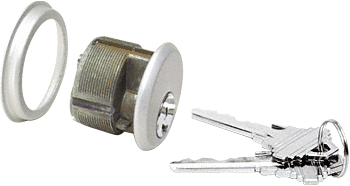

This CRL Single Mortise Key Cylinder has a 5-Pin cylinder, and is one inch long (25 millimeter) x 1-5/32 inch (29 millimeter) diameter. Provided standard with two keys in either Schlage "C" or Yale "8" keyway configurations. They are available keyed different or keyed alike in aluminum or bronze finishes. Zinc construction and has a core face of US26D.


Color: Aluminum

Cylinder Length: 1 in (25 mm)
Cylinder Diameter: 1-5/32 in (29 mm)
Cylinder Ring: 3/16 in (4.8 mm)
Minimum Order: 1 Each
