CRL Aluminum Finish Bottom Door Patch with INT302 Insert
C.R. Laurence CRL Aluminum Finish Bottom Door Patch with INT302 Insert | PH11DA
Category: CRL Bottom Door Patch Fitting with Insert No. 1NT302
CRL Aluminum Finish Bottom Door Patch with INT302 Insert
SKU: PH11DA
UPC:

$87.10 (20% off)

$72.58

Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass

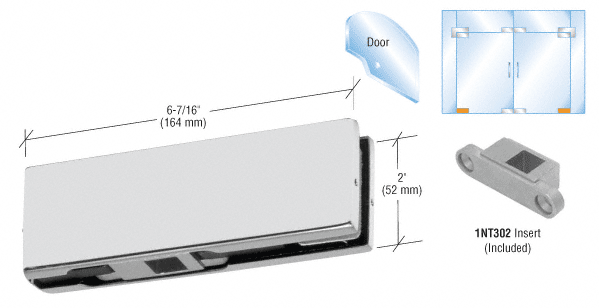

The CRL Bottom Door Patch Fitting includes the No. 1NT302 Insert for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8 or 1/2 inch (10 or 12 millimeter) Glass.


Color: Aluminum

Minimum Order: 1 Each


Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD BE USED.
