Category: CRL Bottom Door Patch Fitting with Insert No. 1NT302

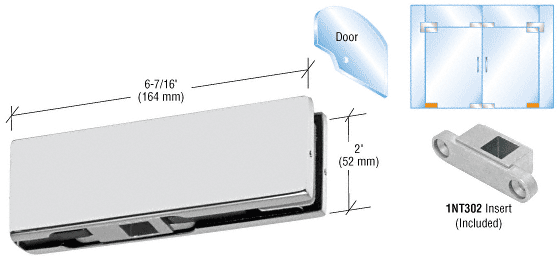

CRL Aluminum Finish Bottom Door Patch with INT302 Insert
SKU: PH10DA
UPC:
Product Details:

North American 2-3/4" (70 mm) Pivot Setback
High Density Cast Body
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
The CRL Bottom Door Patch Fitting includes the No.
1NT302 Insert for use with tapered square style spindle Casma Floor
Closers or 1NT404 Free Swing Pivots. Finished covers are available
in five standard finishes. Gaskets are supplied that allow this
Patch Fitting to be used with either 3/8 or 1/2 inch (10 or 12
millimeter) Glass.
Color: Aluminum
Minimum Order: 1 Each
Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter
hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING
THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD
BE USED.
