Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass

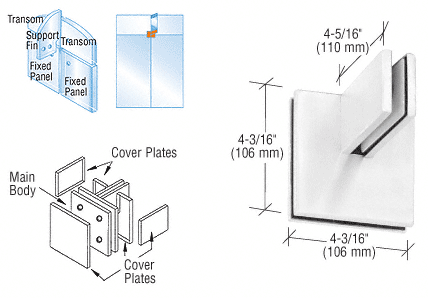

This CRL Four-Way Patch Connector with Support Fin Bracket is used for joining a four lite glass junction that needs extra support to achieve the required structural strength. The support fin glass should be sized to approved criteria (refer to GANA or Manufacturer's Manual), and secured to the ceiling with a PH92 Ceiling Mounted Support Fin Bracket.


Color: Aluminum
Minimum Order: 1 Each

Additional Product Information:
GLASS FABRICATION REQUIRED: Four 3/4 inch (19 millimeter) Diameter Holes.
