Product Details:
- Longer 3/4" (19 mm) Spindle Required for Use with Patch
Fittings and Rail Hardware
- Adjustable Spring power Range of 8-1/2 Pounds to Medium Spring
Size
- Suitable for Doors From 36" to 48" (914 to 1219 mm) to meet
A.D.A. Opening Force Requirements
This

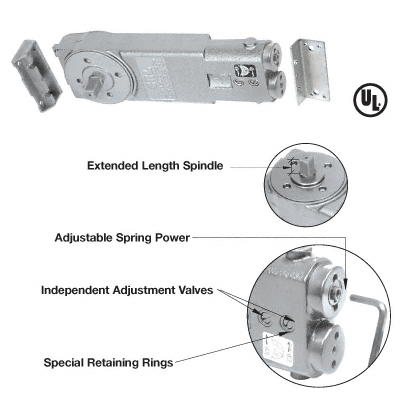

CRL Adjustable Spring Power Overhead Concealed
Door Closer with extended 3/4" Length Spindle is
available to meet Federal A.D.A. Opening Force requirements when
used in conjunction with Patch Fitting and Rail Hardware. The
Closer has independent, dual-action valves to control closing and
latching speeds. Both 90 and 105 degree Hold Open and No Hold Open
models are available. Closer bodies fit into standard 1-3/4 inch x
4 inch (44 x 102 millimeter), or larger, extrusions.
Interchangeable with International, Jackson and similar brands of
Overhead Concealed Closers.
- Closer Body Length: 11-5/8 in (295 mm)
- Closer Body Width: 3-11/16 in (94 mm)
