264 Pound (120 kg) Capacity, 42" (1067 mm) Doors

Narrow 3-1/16" (78 mm) Width Model with Changeable Spindle Heights

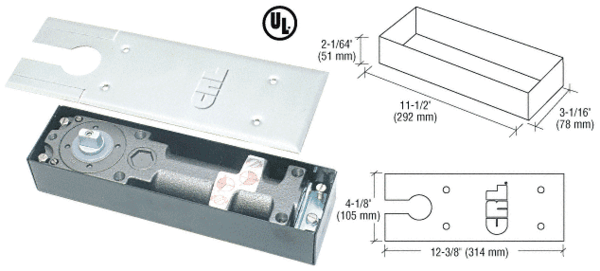

Includes Closer, Cement Case and Cover Plate


Door Closers Cross Reference Chart

These Narrow Width CRL Floor Mounted Door Closers are preferred on doors installed with Patch Hardware because smaller cover plates are more attractive in this type of installation. The standard spindle collar height supplied with the Closer is 1/8 inch (3 millimeter). Spindles with other collar heights are available to accommodate different threshold and finished floor heights. The closer has dual independent valves for closing operation, one valve for closing and one valve for latching.

The 8400 Series Floor Closer is designed to open to a maximum of 180º. Both a 90° Hold Open and a No Hold Open model are available. An auxiliary floor or overhead stop is required to stop the door at less than 180º.

Optional accessories, such as Arms, Pivots and Polished Finish Cover Plates, can be ordered separately.

Important Note:

The 8400 Series Floor Closer is designed to open to a maximum of 180º.

An auxiliary floor or overhead stop is required to stop the door at less than 180º.

Specifications:

Maximum Door Weight: 264 lbs. (120 kg)

Maximum Interior Door Width: 42 in (1067 mm)

Maximum Exterior Door Width: 38 in (965 mm)
