Product Details:
- For Glass-to-Glass Installations
- Supported by Glass Side Panels
- Creates an Even Sight Line When Used with CRL Door
Rails
|

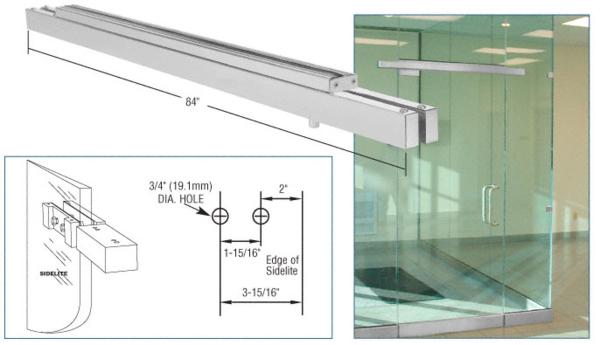

The 1-7/8 x 1-5/8 inch (47.6 x 88.9 millimeter) CRL
Stock Narrow Floating Header with Surface Mounted Top
Pivots work with PH20 Series and PH21 Series Top Door Patch Hardware
Fittings, and with all 3/8 or 1/2 inch (10 or 12 millimeter)
Heavy Glass Door Rails. When
used with CRL Door Rails, you get an even sight line, as
the width of the Narrow Header matches the width of the Door Rail.
For use with Free Swinging
Bottom Pivots or Floor
Closers. These Headers are fabricated for use in 1/2 inch (12
millimeter) glass-to-glass configurations. Note:
Length and installation type must be specified when ordering. For
additional assistance regarding other possible configurations,
contact us at (888) 663-9830, extension 7700, or by
e-mail.
CRL 48" Long Polished Brass Narrow Floating Header with Surface
Mounted Top Pivots for 36" Wide Opening
If the weight of the transom above the header exceeds 100 pounds
(45.4 kilograms) the transom will need to be supported from the
ceiling to take weight off of the header and prevent bowing. The
customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94
Patch Fittings. Please contact Technical Sales at Ext. 7700 for
assistance.
