Category: CRL 180 Degree Hydroslide Standard Kits

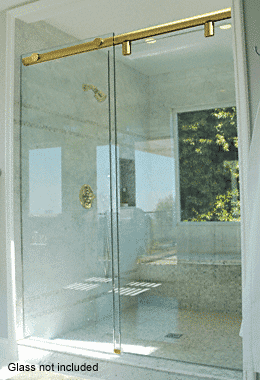

CRL 60" Polished Brass Hydroslide 180 Degree Standard Sliding Shower Door Kit
SKU: HYDK60BR
UPC:
$511.22
(20% off)
$426.02
Product Details:

Excellent Design for Compact Areas
Clean Sleek Lines
Quick and Easy Installation
Available in Four Finishes
Accommodates a Wide Range of Shower Designs
Patent Pending
CRL Hydroslide Sliding Shower Door Kits were
designed for full standing showers or above bathtubs. The
Hydroslide System can accommodate a wide range of shower designs
with fixed glass panels on either end, or both sides at 90 or 180
degrees. The Hydroslide System also accommodates the option of
floor-to-near-ceiling glass panels with a sliding door. CRL
Hydroslide Sliding Shower Door Kits feature the latest European
'all-glass' look.
Kits are available in either 60 or 84 inch (1524 or 2134
millimeter) widths. Installers can cut the width to size, and
height is optional as long as the sliding door glass weighs less
than 88 pounds (40 kilograms). The 180 Degree Wall-to-Wall
Installation only requires the 180 Degree Standard Kit for the
installation. Individual or replacement parts can also be ordered.
Bottom Glass Attachments, Thresholds, and Handles or Knobs must be
ordered separately.
CRL Hydroslide Kits come in four finishes; Chrome Fittings with a
Brite Anodized Sliding track, polished Brass with a Brite Gold
Anodized Sliding track, Brushed Nickel with Brushed Nickel Anodized
Sliding Track, and Oil Rubbed Bronze Anodized Sliding Track.
Each Kit comes with complete fabrication and installation
instructions. 180 Degree Standard Kit consists of: One Sliding
Glass Door Upper Track, Two Hangers for Sliding Glass Door, Two
Sliding Glass Door Rollers, Two Sliding Glass Door Roller Stops,
One Sliding Glass Door Floor Guide, Two 90 Degree Wall-to-Upper
Track Connectors, Two 180 Degree Glass-to-Sliding Track
Connectors.
Color: Polished Brass
Overall Width: 60 in (1524 mm)
Additional Product Information:
SPECIFICATIONS
Glass Thickness Range: 5/16 to 3/8 inch (8 to 10 millimeter)
Tempered Safety Glass (NOT INCLUDED)
Materials: Plated or Lacquered Solid Brass Fittings; Anodized
Aluminum Sliding Door Track
Maximum Door Weight: 88 pounds (40 kilograms)
Fabrication: Holes required in fixed panel and door
Includes: Gaskets, Screws, and Glass Fabrication Information
