Product Details:

Beveled Vision Lite Frame Available in 12 Different Sizes
Fire Rated
Bronze Powder Coat Finish
For Glazing Thickness of 3/16" to 1/4" (5 to 6 mm) (not included)
Glass not included

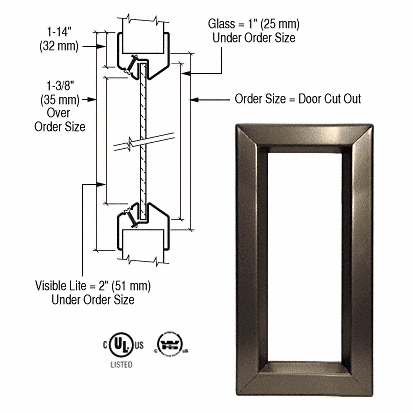

CRL's new Door Vision Lites are constructed from 20 gauge CRS bronze powder coated frames. They are designed for 1-3/4" (44 mm) thick doors in sizes from 5" x 35" (127 x 889 mm) to 24" x 60" (610 x 1524 mm). Vision Lites include mitered and welded corners, a continuous glass retainer, and countersunk mounting holes in the bevel on the non-corridor side. These Vision Lites are listed with both UL and WHI. Custom sizes and finishes are available upon request.

Size Width x Height: 6" x 27" (152 x 686 mm)
Uses Glass Size: 5" x 26" (127 x 660 mm)
Exposed Glass: 4" x 25" (102 x 635 mm)

Note: Glass not included

Bronze Powder Coat Finish
