CRL 48" x 36" Duranodic Bronze All Electric Fully Automatic Deluxe Sliding Service Window - "OX"
C.R. Laurence CRL 48" x 36" Duranodic Bronze All Electric Fully Automatic Deluxe Sliding Service Window - "OX"  | EDW48360XDU
Category: CRL EDW Series Electric 48 in x 36 in Size Windows
CRL 48" x 36" Duranodic Bronze All Electric Fully Automatic Deluxe Sliding Service Window - "OX"
SKU: EDW48360XDU
UPC:

$6,451.49 (20% off)

$5,376.24

Product Details:


Can not be shipped by UPS, FedEx - Common Carrier Only.
Call for shipping quote. 216-663-9830

24V DC-Electric Motor with UL/CSA Approved Class 2 Transformer
Microprocessor Logic Control Panel Assembly
Electro/Mechanical Operation (Requires 120V AC Only)

The CRL All Electric Fully Automatic Deluxe Sliding Window is a single sliding service window perfect for drive-thru applications such as fast food restaurants, pharmacies, banks, or anywhere a high quality automatic service window is required.

Color:  Duranodic Bronze

Width: 48 in (1219 mm)
Height: 36 in (914 mm)

Configuration:  OX from Clerk side

Ship Via: No UPS - Common Carrier Only

Minimum Order:  1 Each

Window includes aluminum half bottom track, provides clear service opening (no track under slider).

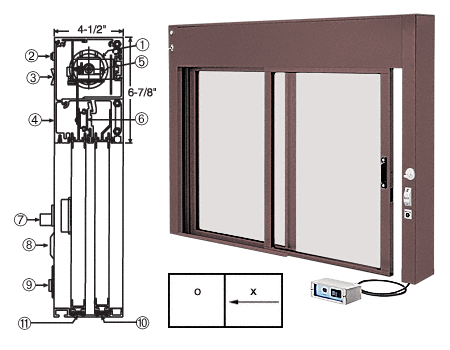

Standard Features (refer to above image on left)
1. 24V DC-Electric Motor
2. Master Push-to-Reset Fuse
3. Master Power On/Off Switch
4. Removable Access Panel
5. Microprocessor Logic Control Module
6. Heavy-Duty Anti-Lift Ball Bearing Carrier
7. Thumb turn Hook Throw Deadlock
8. Locked/Unlocked Indicator
9. Push Button Manual Open/Close Switch
10. Vinyl Track (No Metal-to-Metal Rubbing)
11. Poly-Pile Weather-stripping with Fin

Safety Features:
24V DC System
UL/CSA Approved Class 2 Transformer
Auto Reverse Feature if Window is Blocked
Soft Close Feature in "Pinch Zone"
Mechanical Positive Slip Clutch.

Specifications:
Materials: Aluminum Extrusions, Stainless Steel Control Panel Assembly.
Glazing: 1/4 Inch (6 millimeter) Clear Tempered Glass
Controls: Infrared Sensing Device and Automatic/Off/Manual Switch Included in 7-3/4 Inches Wide x 2-3/16 Inches High x 3-9/16 Inches Deep (197 x 56 x 90 millimeters) Stainless Steel Housing (Mounted by Installer). Jamb Mounted Push Button Switch for Manual Operation. Header Mounted Master Power Switch and Push-to-Reset Master Fuse.
Power Requirements: Hardwire to 120V AC Power Source.
Rough Opening: Add 1/2 inch (12.7 millimeter) to Width, 1/4 inch (6.4 millimeter) to Height.
Control Panel Assembly Contains an Infrared Sensing Device and an Automatic/Off/Manual Switch Enclosed in a Stainless Steel Housing, Not Attached to Window, Mounted Separately by Installer.

Estimated Lead Time: 15 WORKDAYS + SHIP
