Product Details:
- The Unique Method of Installing Load Threads in Almost
Any Material, Aluminum, Magnesium, Steel, Cast Iron, Plastics,
Fiberglass or Hardboard
- Blind Installation (Installs From One Side of
Work)
- Vibration Proof
|

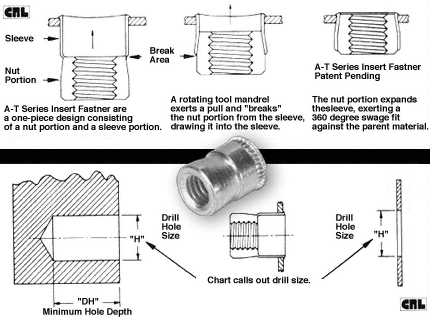

The unique feature of CRL A-T Series Insert
Fasteners is the axial knurl under the flange of the
insert. The expansion of the sleeve causes the knurl to bite into
the parent material, providing greater torque resistance. Use CRL
A-T Series Insert Fasteners to improve your product and speed up
production. They're ideal for high speed installations as well as
low volume applications using manual tools. A-T Series Insert
Fasteners may be used in place of anchor nuts, weld nuts,
wire-formed inserts, press-nuts, loose hardware or other threaded
inserts. Ideal for securing push bars to aluminum storefront doors.
CRL A-T Series Inert Fasteners are "non
grip-sensitive." One Inert Fastener part number per thread size
accommodates any grip over .030 inch (.76 millimeter), eliminating
the need for various grip ranges.
Features:
- Wear resistant threads due to unique mechanical properties of
installation
- No special skills are required - installation can be learned in
minutes
- No deburring necessary
- Ideal for high-speed production. Can be installed at rates up
to 500 pieces per hour
- Insert Fasteners self-tighten with repeated use
- Use in standard drilled or punched holes
- Can be installed at any point of the assembly operation with
portable tools
- Can be installed after painting or plating
- Metric and other sizes, aluminum, brass or stainless steel
available on special order
