Category: CRL "Roll-Ezy" Steel Showcase Sliding Track Assemblies
CRL 36" Double Showcase Sliding Track Ball Bearing Assembly
SKU: KV99236
UPC:
$253.32
(20% off)
$211.10
Product Details:
Strong Zinc Plated Steel for Large Door Installations
Pre-Cut For your Convenience
Easy to Install
This CRL Ball Bearing Roll-EZY Track
Assembly is ideal for large door installations. This
assembly is easy to install and, once installation is complete, the
doors operate smoothly and efficiently providing years of reliable
service. Can easily be cut down to fit opening. This Track Assembly
is designed for use with 1/4 inch (6 millimeter) glass.
Extrusion Length: 36 in (914 mm)
Minimum Order: 1 Each

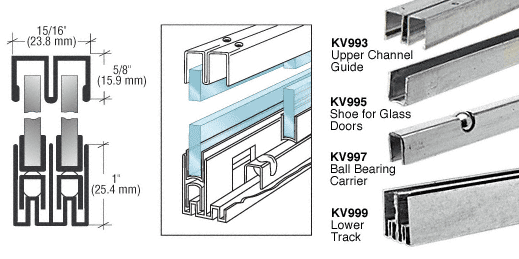

Each assembly contains:
One piece KV993 Upper Channel Guide
One piece KV995 Shoe for Glass Doors
One and a half pieces KV997 Ball Bearing Carrier
One piece KV999 Lower Track
Note:
1. Allow a one inch (25.4 millimeter) opening for the width of the
track, and cut glass 1-1/4 inches (31 millimeters) shorter than the
height of opening.
2. The Ball Bearing Carrier (KV997) should be 2/3 the length of the
opening and then centered under the Shoe. This will provide proper
rolling action for the door since the Ball Bearing Carrier travels
at 2/3 the speed of the Shoe. The length of the KV997 Ball Bearing
Carriers supplied in this assembly is 28 inches (711.2
millimeters).
3. The weight limitation for this Track Assembly is 50 lbs/ft.
